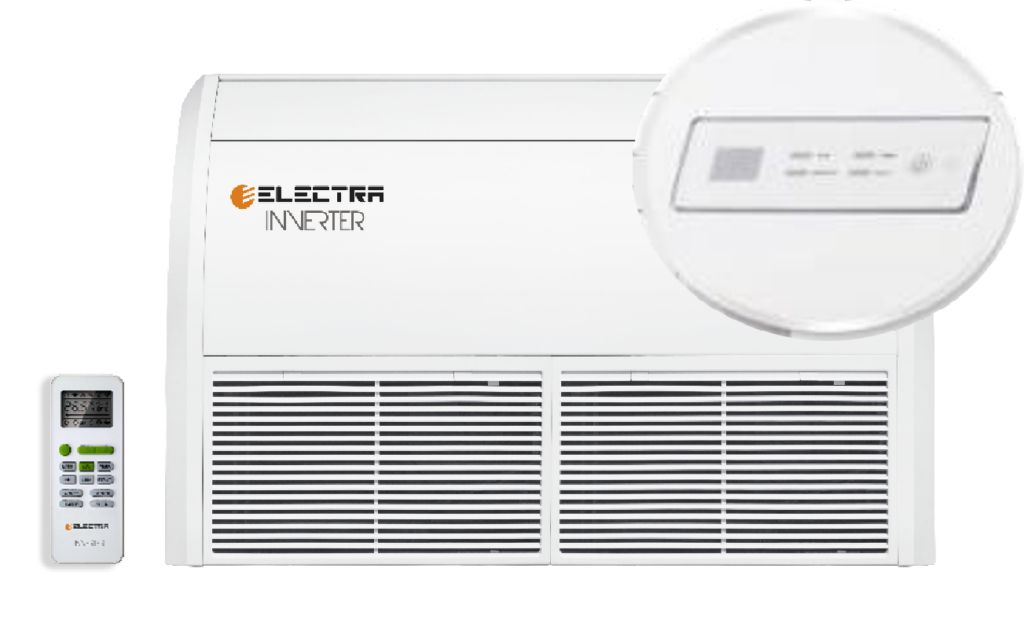

Piso - Techo
El equipo piso-techo ofrece un diseño moderno y funcionalidad según cada necesidad.
Su uso es ideal para cubrir superficies amplias como locales comerciales, restaurantes, gimnasios, depósitos.
Características Principales
Led display
Diseño moderno

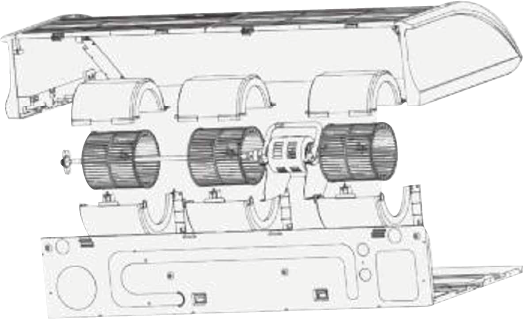

Sopladores de plástico desmontables
De diseño universal, lo que facilita el mantenimiento

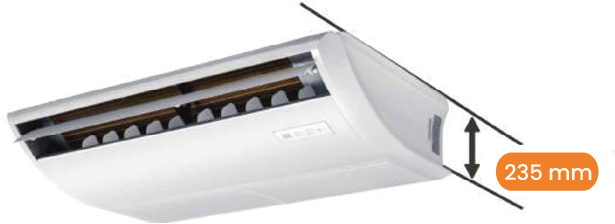

Diseño ultra-compacto
Se adapta a varios estilos de habitación

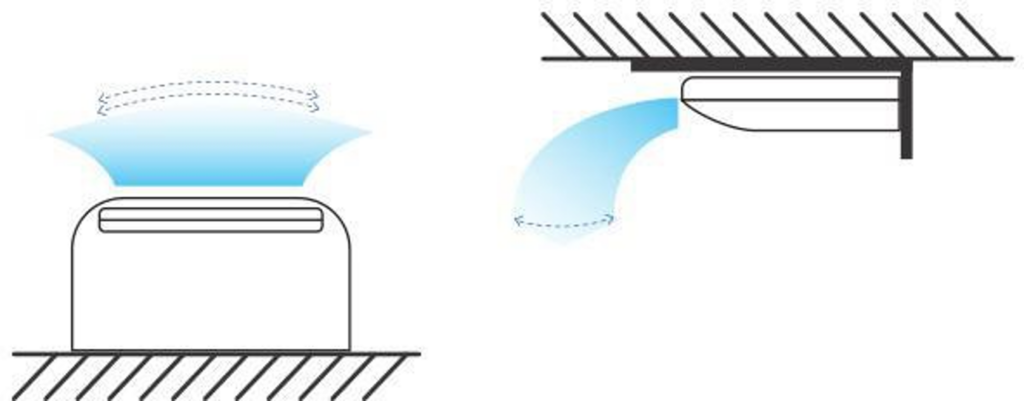

Flujo de aire con rango amplio
El aire se suministra en un ángulo más amplio con oscilación transversal

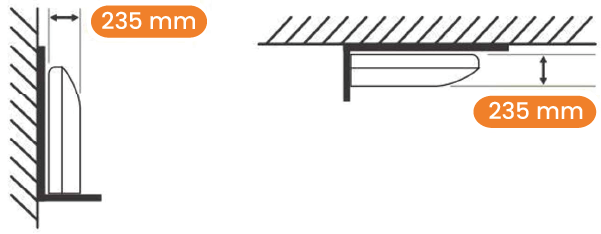

Instalación flexible
Suspendida en el techo o en el suelo

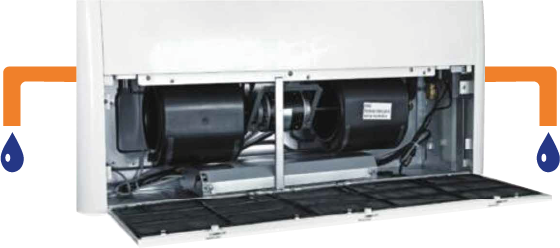

Doble dirección de drenaje
El agua de condensación puede drenarse tanto por la izquierda como por la derecha
Control cableado (opcional)
disponible, especialmente para habitaciones de hotel, oficinas, etc.
Piso-Techo Electra Inverter EFI57R4 4370W
- 15000 Frigorías
Piso-Techo Electra ON OFF EFO57R4 4551W
- 15000 Frigorías
Piso-Techo Electra Inverter EFI72R4 5500W
- 18000 Frigorías
Piso-Techo Electra ON OFF EFO72R4 5890W
- 18000 Frigorías
Conseguí todos nuestros productos haciendo click en las siguientes tiendas:
Características Técnicas
Modelos Piso - Techo
EFO57R4
EFO72R4
EFI57R4
EFI72R4
EFO57R4
| Piso Techo | EFO57R4 | ||
| Piso Techo – EAN | 0798190221229 | ||
| Unidad Interior | EFO57R4/I | ||
| Unidad Interior – EAN | 0798190221236 | ||
| Unidad Exterior | EFO57R4/O | ||
| Unidad Exterior – EAN | 0798190221243 | ||
| Power supply | V//Hz/Ph | 220-240V~/50Hz/1P | |
| Technology | ON OFF | ||
| Cooling | Capacity nominal | Kcal/h | 15000 |
| Input | W | 4551 | |
| Rated current | A | 9,30 | |
| Heating | Input | W | 4058 |
| Rated current | A | 9,50 | |
| Indoor coil | Number of row | 3 | |
| Fin spacing | mm | 1,5 | |
| Fin material | Hydrophilic & Louver Fin | ||
| Tube outside diameter | mm | φ7 | |
| Tube material | Innergroover tube type | ||
| Coil length x height x width | mm | 1300×294×38.1 | |
| Number of circuit | 10 | ||
| Indoor fan motor | Input | W | 112/104/98/92 |
| Running current | A | 0.51/0.48/0.45/0.44 | |
| Capacitor | uF | 3,5 | |
| Applied QTY. | 2 | ||
| Speed (Hi/Me/Lo) | rpm | 1220/1160/1010/930 | |
| Indoor air flow (Hi/Me/Lo) | m3/h | 2177/1689/1434 | |
| Indoor noise level (Hi/Me/Lo) | dB(A) | 52/49/46 | |
| Indoor dimension | Unit (WxHxD) | mm | 1635x675x235 |
| Packing (WxHxD) | mm | 1710x748x305 | |
| Indoor weight | Net | kg | 40 |
| Gross | kg | 46 | |
| Refrigerant | Type | R410A | |
| Refrigerant pipe | Liquid side | mm | 9,52 |
| Gas side | mm | φ19.05 | |
| Drainage water pipe diameter | mm | OD25 | |
| Operation Control | Remote controller | ||
EFO72R4
| Piso Techo | EFO72R4 | ||
| Piso Techo – EAN | 0798190221250 | ||
| Unidad Interior | EFO72R4/I | ||
| Unidad Interior – EAN | 0798190221267 | ||
| Unidad Exterior | EFO72R4/O | ||
| Unidad Exterior – EAN | 0798190221274 | ||
| Power supply | V//Hz/Ph | 220-240V~/50Hz/1P | |
| Technology | ON OFF | ||
| Cooling | Capacity nominal | Kcal/h | 18000 |
| Input | W | 5890 | |
| Rated current | A | 12,00 | |
| Heating | Input | W | 5147 |
| Rated current | A | 12,40 | |
| Indoor coil | Number of row | 2 | |
| Fin spacing | mm | 1,5 | |
| Fin material | Hydrophilic & Louver Fin | ||
| Tube outside diameter | mm | φ7 | |
| Tube material | Innergroover tube type | ||
| Coil length x height x width | mm | 1300×294×25.4 | |
| Number of circuit | 6 | ||
| Indoor fan motor | Input | W | 180/164/112/92 |
| Running current | A | 0.81/0.78/0.55/0.44 | |
| Capacitor | uF | 6,0 | |
| Applied QTY. | 2 | ||
| Speed (Hi/Me/Lo) | rpm | 1250/1160/1000/760 | |
| Indoor air flow (Hi/Me/Lo) | m3/h | 2177/1689/1434 | |
| Indoor noise level (Hi/Me/Lo) | dB(A) | 52/49/46 | |
| Indoor dimension | Unit (WxHxD) | mm | 1635x675x235 |
| Packing (WxHxD) | mm | 1710x748x305 | |
| Indoor weight | Net | kg | 38 |
| Gross | kg | 44 | |
| Refrigerant | Type | R410A | |
| Refrigerant pipe | Liquid side | mm | 9,52 |
| Gas side | mm | φ19.05 | |
| Drainage water pipe diameter | mm | OD25 | |
| Operation Control | Remote controller | ||
EFI57R4
| Piso Techo | EFI57R4 | ||
| Piso Techo – EAN | ## | ||
| Unidad Interior | EFI57R4/I | ||
| Unidad Interior – EAN | ## | ||
| Unidad Exterior | EFI57R4/O | ||
| Unidad Exterior – EAN | ## | ||
| Power supply | V//Hz/Ph | 220-240V~/50Hz/1P | |
| Technology | INVERTER | ||
| Cooling | Capacity nominal | Kcal/h | 15000 |
| Input | W | 4370 | |
| Rated current | A | 8,20 | |
| Heating | Input | W | 4810 |
| Rated current | A | 9,10 | |
| Indoor coil | Number of row | 3 | |
| Fin spacing | mm | 1,5 | |
| Fin material | Hydrophilic aluminium | ||
| Tube outside diameter | mm | φ7 | |
| Tube material | Innergroover tube type | ||
| Coil length x height x width | mm | 1300×294×38.1 | |
| Number of circuit | 10 | ||
| Indoor fan motor | Input | W | 105/96/95×2 |
| Running current | A | 0.47/0.44/0.44×2 | |
| Capacitor | uF | 3,5 | |
| Applied QTY. | 2 | ||
| Speed (Hi/Me/Lo) | rpm | 1180/1130/1010 | |
| Indoor air flow (Hi/Me/Lo) | m3/h | 1800/1550/1250 | |
| Indoor noise level (Hi/Me/Lo) | dB(A) | 52/49/46 | |
| Indoor dimension | Unit (WxHxD) | mm | 1635x675x235 |
| Packing (WxHxD) | mm | 1710x748x305 | |
| Indoor weight | Net | kg | 39 |
| Gross | kg | 45 | |
| Refrigerant | Type | R410A | |
| Refrigerant pipe | Liquid side | mm | 9,52 |
| Gas side | mm | φ19.05 | |
| Drainage water pipe diameter | mm | OD25 | |
| Operation Control | Remote controller | ||
EFI72R4
| Piso Techo | EFI72R4 | ||
| Piso Techo – EAN | 0798190221199 | ||
| Unidad Interior | EFI72R4/I | ||
| Unidad Interior – EAN | 0798190221205 | ||
| Unidad Exterior | EFI72R4/O | ||
| Unidad Exterior – EAN | 0798190221212 | ||
| Power supply | V//Hz/Ph | 220-240V~/50Hz/1P | |
| Technology | INVERTER | ||
| Cooling | Capacity nominal | Kcal/h | 18000 |
| Input | W | 5500 | |
| Rated current | A | 9,50 | |
| Heating | Input | W | 5420 |
| Rated current | A | 10,10 | |
| Indoor coil | Number of row | 4 | |
| Fin spacing | mm | 1,5 | |
| Fin material | Hydrophilic aluminium | ||
| Tube outside diameter | mm | φ7 | |
| Tube material | Innergroover tube type | ||
| Coil length x height x width | mm | 1328×294×50.8 | |
| Number of circuit | 11 | ||
| Indoor fan motor | Input | W | 126/124/122×2 |
| Running current | A | 0.580/0.572/0.564×2 | |
| Capacitor | uF | 6,0 | |
| Applied QTY. | 2 | ||
| Speed (Hi/Me/Lo) | rpm | 1250/1165/1000 | |
| Indoor air flow (Hi/Me/Lo) | m3/h | 2000/1770/1450 | |
| Indoor noise level (Hi/Me/Lo) | dB(A) | 54/51/48 | |
| Indoor dimension | Unit (WxHxD) | mm | 1635x675x235 |
| Packing (WxHxD) | mm | 1710x748x305 | |
| Indoor weight | Net | kg | 41 |
| Gross | kg | 48 | |
| Refrigerant | Type | R410A | |
| Refrigerant pipe | Liquid side | mm | 9,52 |
| Gas side | mm | φ19.05 | |
| Drainage water pipe diameter | mm | OD25 | |
| Operation Control | Remote controller | ||
Creando tu perfil en nuestro portal de Servicio al Cliente, podrás descargar gratis el Manual de Instrucciones de Uso e Instalación.
Allí podrás registrar tu producto y acceder a toda la información del mismo.
